Leica Super-Vario-Elmar-TL 11-23mm f/3.5-4.5 ASPH
- Description
- Tech Specs
-

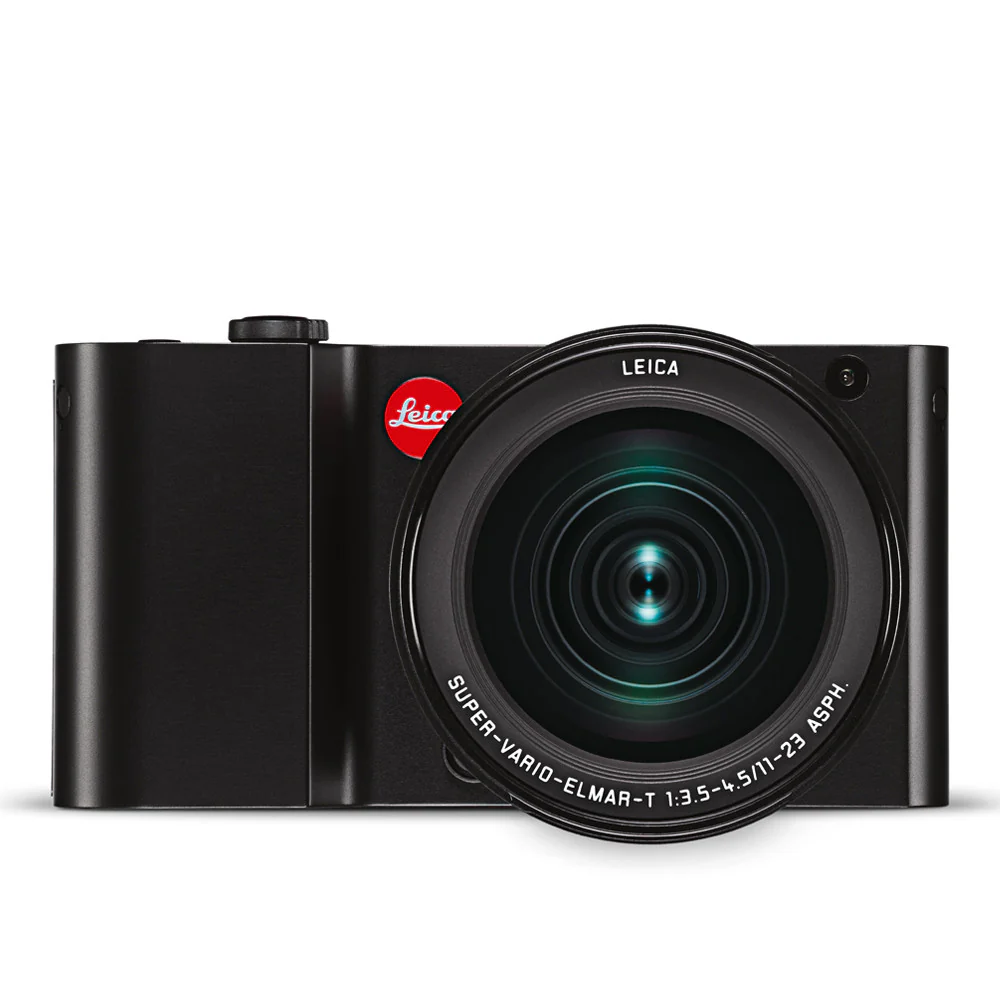

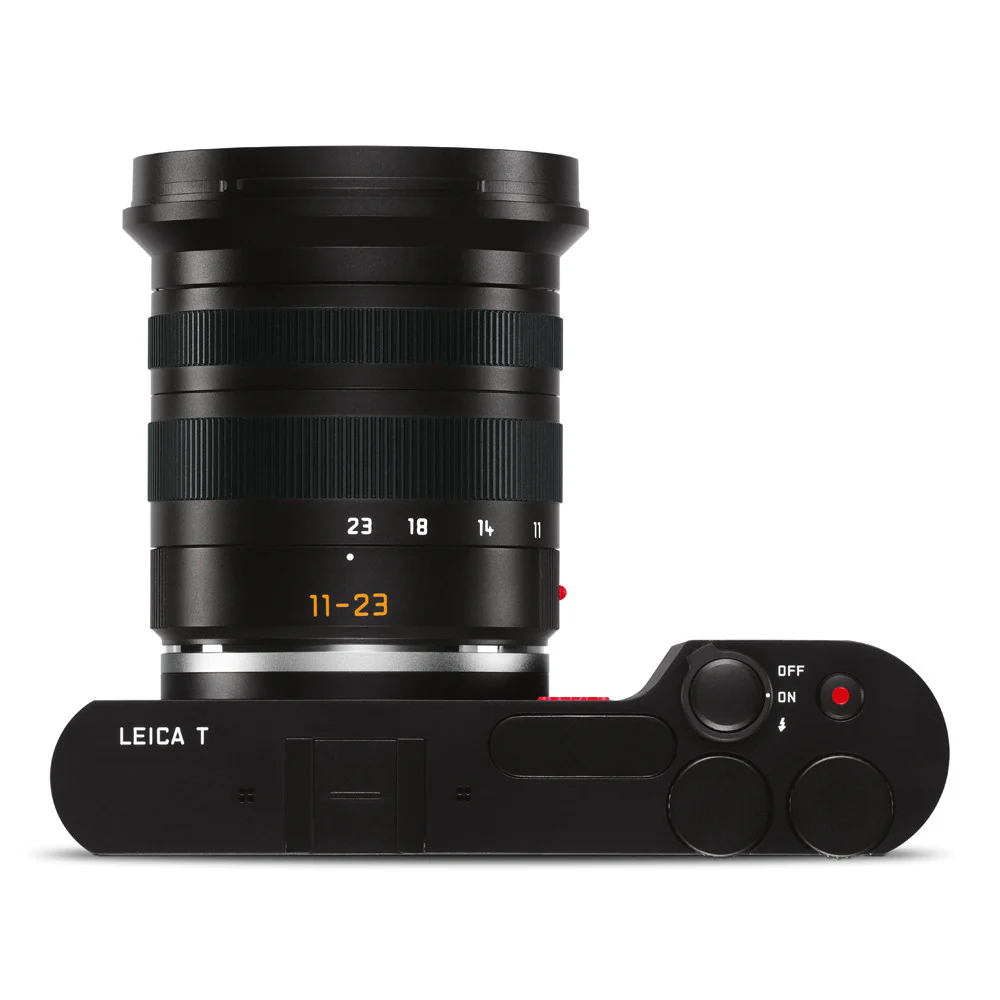

Leica Camera expands the Leica T Camera System with the introduction of a new zoom lens, the Leica Super- Vario-Elmar-T 11-23mm f/3.5-4.5 ASPH.
To learn more about the camera and see real-world sample images under a wide variety of lighting conditions, check out the excellent in-depth Leica CL review on Red Dot Forum: The Leica CL Review: The Perfect Travel CameraKEY BENEFITS & IMPORTANT FEATURES
- Best possible imaging results from the closest focusing distance to infinity
- Very compact wide angle zoom with the ability to close focus to 20cm
- Metal housing
- Two year warranty
-
Compatible cameras All Leica T models Field angle At 11 mm: approx. 103º, 93º, 70º, At 23 mm: approx: 103º, 93º, 70º, corresponding to around 17-35 mm focal length in 35 mm format Optical design number of lenses/group 14 / 11 Aspherical surfaces 4 Position of entrance pupil at infinity at 11 mm: -70 mm, at 23 mm: -59.7 mm Distance setting /function Electronically controlled. Mode selectable using camera menu: Automatic (AF) or manual (M), in AF mode manual override possible at any time with setting dial Focusing range 0.2 m to infinity Smallest object field/largest scale at 11 mm: approx. 230 x 153 mm / 1:9.7 at 23 mm: approx. 127 x 85 mm / 1:5.4 Aperture setting/function Electronically controlled, adjustment using dial on camera, third values also available Lowest value 16 Filter mount/lens hood External bayonet fitting for lens hood (included), internal thread for E67 filters, filter mount does not rotate
Finish Black anodized
Largest diameter approx. 77 / 97 mm (without / with lens hood)
Length to bayonet mount approx. 73 / 86 mm (without / with lens hood)
Weight approx. 368 / 395 g (without / with lens hood)
